Pressure Gas Cars

Zags / GATX type 7599

Butadiene Butane Butene Isobutane Isobutene Propane Propane Butane Mixture (Mixture A) Propane Butane Mixture (Mixture A0, A1, B, B1, C) Propene

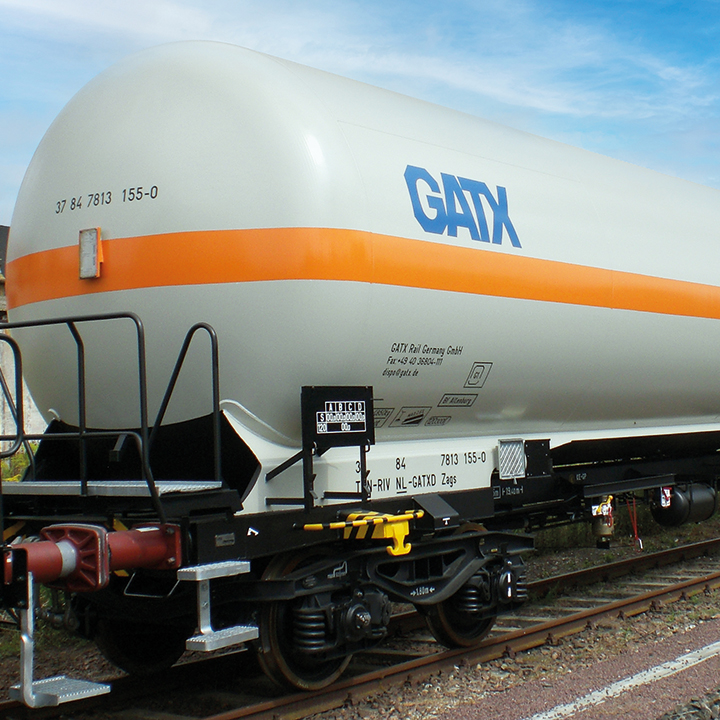

The 4-axled rail tank car is used for the transportation of gases, liquefied under pressure.

Product Details
Capacity 120.0 m³
Tare weight 34.8 t
Total weight 90.0 t

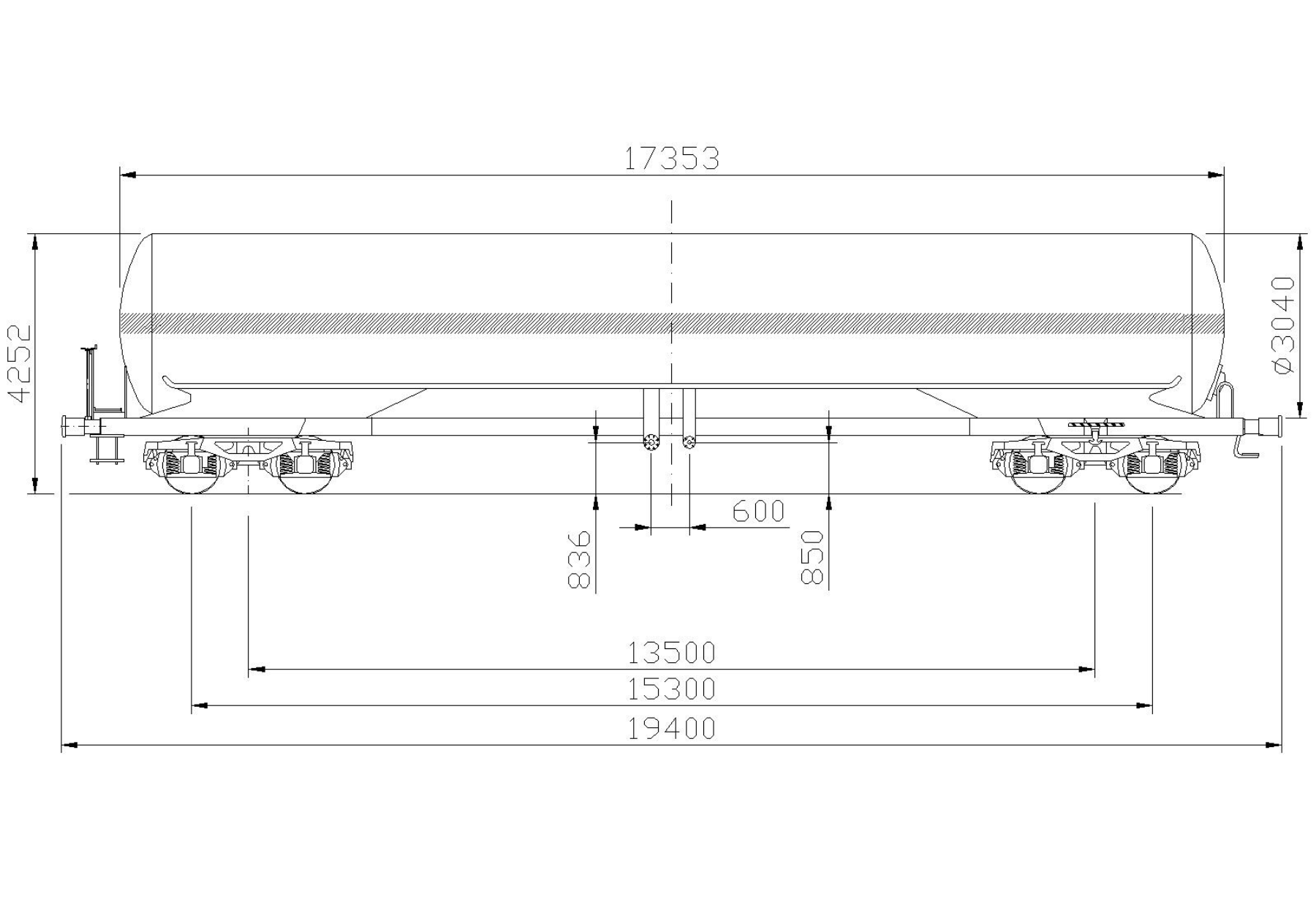

Length over buffers 19,400 mm
Distance between outer axles 15,300 mm
Test pressure 27 bar
Sun shield No
Lowest filling temperature -40 °C
Documents
Fact Sheet
Download
Operating Instructions
Download
